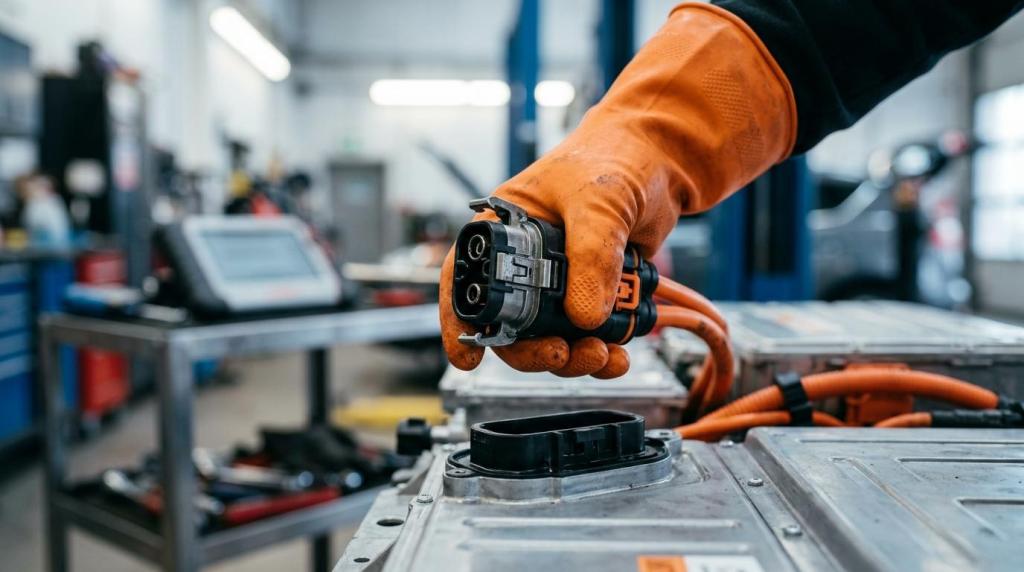

A modern hybrid can feel deceptively simple from the driver’s seat. It starts quietly, moves between petrol and electric power with little fuss, and often gives only a small warning light when something is wrong.
Behind that calm behaviour sits a tightly managed system of battery modules, control units, sensors, cooling components, power electronics, and high-voltage wiring. When a fault appears, proper diagnosis is not a matter of plugging in a scanner and swapping the first part named on the screen. It is a structured process built around data, testing, and safety.
That matters because the same symptom can point to very different causes. A charging issue might be a battery management problem. Poor performance might come from overheating, a weak battery block, a sensor fault, or a DC-DC converter issue affecting low-voltage systems. Good diagnostics sort symptoms from causes before repairs begin.
What hybrid system diagnostics actually cover
Hybrid system diagnostics look at far more than the hybrid battery alone. A technician needs to assess the full network that allows the vehicle to store energy, deliver power, recharge the battery, and communicate between modules.
Official safety guidance around electric and hybrid vehicles points to the complexity of these systems. Battery packs rely on battery management hardware and software, and many hybrid and electric vehicles also use a DC-DC converter to reduce high-voltage power for 12-volt functions. If one area slips out of range, the effect can spread across the vehicle.
A proper diagnostic process may involve checking:
- Battery pack condition
- Battery management system operation
- High-voltage cables and connectors
- Inverter and motor control
- DC-DC converter performance
- Cooling fans and thermal sensors
- Charging components in plug-in hybrids
- Communication between control modules
That scope is why hybrid diagnostics need specialist tools and training. The job is to identify the failed component, the failed signal, or the failed condition, not just the warning message.
Why fault codes are only the starting point in hybrid diagnostics
Fault codes are valuable, but they are clues rather than verdicts.
A hybrid may log a code for battery deterioration, isolation fault, cooling performance, sensor range, charge control, or module communication. Each code tells the technician where the vehicle noticed a problem. It does not always identify why that problem occurred. A battery management fault can look like a charging fault. A wiring issue can look like a module failure. A tired 12-volt system can trigger strange behaviour across multiple controllers.
This is where live data analysis becomes decisive. Instead of looking only at stored codes, the technician watches real-time values while the vehicle is started, driven, charged, or placed under load. Battery block voltages, current flow, temperature spread, state of charge, fan activity, and converter output can reveal patterns that a static scan cannot.
That approach saves money as well as time. Replacing expensive hybrid repairs without proving the root cause is a risky way to repair any vehicle, and especially a costly one when high-voltage components are involved.
The hybrid diagnostic workflow from scan tool to repair verification
The best hybrid diagnostics follow a repeatable process. That process may vary by make and model, though the logic stays much the same: confirm the fault, collect data, test the suspected area, repair, then verify.
Before touching the high-voltage side, the technician confirms the customer concern and checks the vehicle history. Was the issue present only in hot weather? During charging? Under acceleration? After sitting overnight? Those details shape the test plan.
Next comes a full system scan. That means reading all relevant modules, not only the engine controller. Hybrid faults often involve several controllers talking to each other, so the pattern across modules can be more useful than one code alone.
After the initial scan, live data and targeted tests begin. Depending on the fault, this may include voltage balance checks, sensor testing, current flow analysis, load testing, thermal checks, or inspection of connectors and harnesses. Once the repair is done, the system must be tested again to confirm the result in real operating conditions.
| Diagnostic stage | What is checked | Why it matters |
|---|---|---|
| Initial scan | Stored fault codes, pending codes, module communication | Shows where the vehicle detected a problem |
| Live data review | Voltages, temperatures, current, state of charge, converter output | Reveals faults that appear only during operation |
| Physical inspection | Connectors, wiring, corrosion, cooling paths | Finds issues a scan tool cannot see |
| Targeted electrical tests | Sensor values, load behaviour, resistance, voltage drop | Confirms the real cause of the fault |
| Battery analysis | Balance, weak blocks, temperature spread, state of health | Separates battery wear from control or sensor faults |
| Repair verification | Repeat scans, road test, charge test if needed | Confirms the fix before the vehicle leaves |
The verification stage deserves more attention than it often gets. Clearing codes and seeing no warning light at idle is not enough. The system has to behave correctly under the same conditions that triggered the fault in the first place.
High-voltage safety procedures during hybrid system diagnostics
High-voltage work changes the rules. Official guidance makes it clear that qualified technicians need the right protective and diagnostic equipment, along with training for work on or around hybrid and EV systems. That is not a box-ticking exercise. It is the foundation of safe and accurate diagnostics.
In practical terms, safety procedures are built into the diagnostic process itself. A workshop cannot assess a high-voltage battery or power electronics properly if it is not set up for controlled isolation, correct test methods, and safe reactivation of the system.
Typical safety steps include:
- Vehicle assessment: identify the system type, voltage range, and fault conditions before testing
- Isolation procedure: follow manufacturer steps to disable the high-voltage system and wait the required discharge time
- Protective equipment: use insulated gloves, rated tools, and appropriate test gear for high-voltage circuits
- Verification checks: confirm the system status before and after testing or repair
Good safety practice also protects the diagnosis itself. When systems are isolated correctly and tested in the right order, misleading readings are less likely.
Battery management system testing in hybrid diagnostics
The battery management system, or BMS, is one of the most important parts of any hybrid. It monitors voltage, current, temperature, and charge status across the pack, and it helps manage battery protection and balance.
Because of that role, BMS faults can mimic battery failure, charging problems, warning lights, or drivability complaints. A vehicle may hesitate, limit power, cycle the engine more often, or refuse to charge properly, even when the battery cells are not the main issue. That is why BMS-related diagnosis must look at both the hardware and the data it is producing.
A technician will usually compare module or block voltages, review temperature sensor readings, assess charge and discharge behaviour, and look for balance issues. If one section of the battery sags more than the rest under load, or recovers differently after load is removed, that can point to a weak module. If sensor values are implausible, the fault may sit in the monitoring circuit rather than the battery itself.
Battery state of health is another important part of the picture. State of health is not a simple yes or no result. It reflects battery capacity, internal resistance trends, temperature behaviour, and how evenly the pack is operating. Earlier technical work in this field has shown that voltage and temperature differences across modules or cells can reduce pack performance significantly. That is why balance checks matter so much.
Live data analysis for charging and drivability faults
Live data is where hybrid diagnostics become precise.
When the vehicle is operating, the technician can see whether the battery is accepting charge normally, whether cooling is keeping pace with heat load, whether the converter is supporting the 12-volt system, and whether sensor readings make sense together. One number on its own may not look dramatic. The pattern across several values often tells the real story.
This is especially useful for plug-in hybrids. Charging-session failures can involve vehicle-side issues, charging communication, battery temperature limits, or control logic that interrupts the process. Industry standards around diagnostic communication for plug-in vehicles recognise this problem directly, with use cases designed to help identify the source of charging issues during the session itself.
Take a simple example. A vehicle may report intermittent charge failure. Static fault memory might show little or nothing. Live data could reveal that battery temperature spikes during charging, or that a sensor drops out only at a certain point, or that the charger handshake begins correctly but the vehicle stops the session when a parameter moves out of range. That is the value of watching the system in motion.
Common faults identified by hybrid system diagnostics
Many hybrid faults sound similar from the driver’s perspective. Warning lights, weak acceleration, poor fuel economy, noisy cooling fans, or charging trouble can all overlap. Diagnostics separate these by testing the system rather than guessing from the symptom list.
After the initial scan and live data review, a specialist technician can usually narrow the fault to a much smaller group of causes.
Typical findings include:
- Weak battery module: voltage drops faster than neighbouring modules under load
- Battery imbalance: charge distribution across the pack is uneven
- Cooling system fault: fan command and thermal response do not match
- Sensor error: reported values are implausible compared with pack conditions
- DC-DC converter problem: 12-volt support is unstable or below specification
- Wiring or connector fault: intermittent signals, corrosion, or excessive resistance
- Control module issue: communication loss or incorrect command logic
This level of diagnosis is why many hybrid repairs do not start with battery replacement. In some cases, the real fix lies in a sensor, a harness repair, a module repair, or a cooling issue that has pushed the battery system outside normal limits.
What to expect from a specialist hybrid diagnostic appointment
A specialist hybrid diagnostic appointment should feel methodical, not rushed. The aim is to build evidence from the vehicle before recommending repairs.
That usually means asking detailed questions, scanning more than one control module, carrying out battery and electrical tests, and checking live data under the conditions that reproduce the complaint. It may also involve reviewing charging behaviour in plug-in hybrids, especially when the issue appears only at home, only on public chargers, or only after a period of driving.
Drivers should also expect a difference between generic mechanical service work and high-voltage diagnostic work. That distinction matters electrically as well, because as Au2tek notes in its review of OBD diagnostics and aftermarket connections, modern vehicle networks can be sensitive to how tools and added equipment interact with control systems. Hybrid and EV systems need dedicated test equipment, hybrid-capable scan tools, and technicians trained to work safely around high-voltage components. Those requirements are not about drama. They are about getting a clear answer.
For owners, the upside is strong. A disciplined diagnostic process gives a much better chance of repairing the actual fault, protecting expensive components, and keeping the vehicle reliable for the long term. That is the real purpose of hybrid diagnostics: not just reading a code, but proving what the system is trying to say.
